- Screen surface size
Width: 1.2-3.6 meters; Length: 4-10 meters, select according to the processing capacity requirements. - Screen hole size
Select the screen hole shape (round, square or slit) and size (0.1-50mm) according to the material particle size. - Vibration parameters
Amplitude: 2-8mm; Frequency: 800-1500 times/minute. - Processing capacity
The processing capacity of a single machine can reach 50-800 tons/hour, depending on the material characteristics and screening requirements. - Power
The power of the vibration motor is usually 5.5-30kW, selected according to the equipment size and processing capacity.
Screening equipment, Mining equipment, Mining machinery

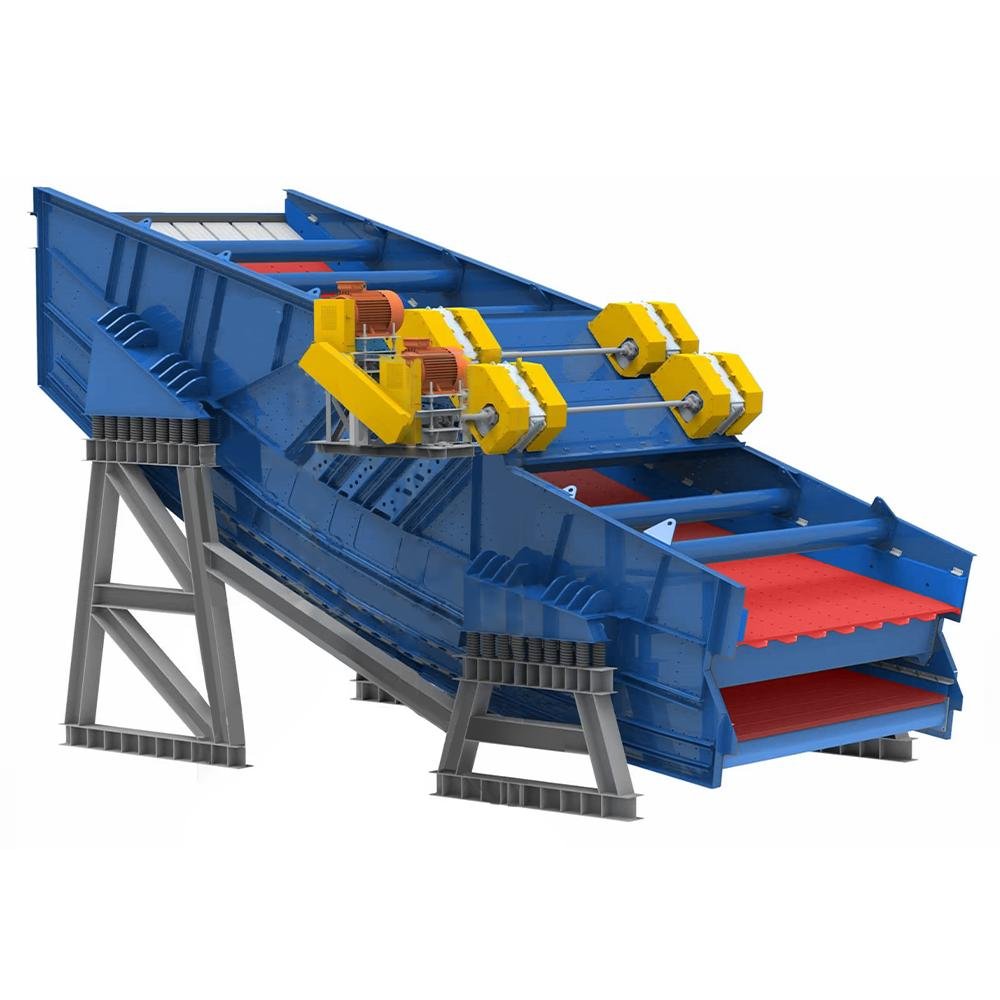

banana sieve
- Efficient screening
Multi-stage inclination design allows materials to be quickly layered and fully screened, and the processing capacity is 30%-50% higher than that of ordinary vibrating screens. - Large processing capacity
Suitable for large-scale screening of medium and fine particles, and the processing capacity of a single machine can reach hundreds of tons per hour. - Energy saving and environmental protection
Low-energy consumption vibration motor and vibration damping spring are used, with low noise and less dust emission. - Strong adaptability
Suitable for dry and wet screening, and can handle materials with high water or mud content. - Convenient maintenance
The screen is easy to replace, the lubrication cycle of the vibrator bearing is long, and the overall maintenance cost is low.
| parameter | The screen box is composed of multiple sections of screen surfaces with different inclinations. The inlet section has a larger inclination and the outlet section has a smaller inclination, forming a banana-shaped curve. |
|---|
